Wan Anom WAN ARIS, Tajul Ariffin MUSA, Kamaludin
		MOHD OMAR, Abdullah Hisam OMAR


					The best FIG Commission 5 Paper at a FIG Working Week or a
					FIG Congress  is awarded with the NavXperience Award. The
					award covers among others free participation at next Working
					Week/Congress. The first time the price was awarded at the
					Working Week in Helsinki, 2017. It is sponsored by the
					Berlin based company NavXperience and granted by FIG
					Commission 5. In 2018 the price was awarded  for the 2nd
					time. The paper  “Non-Linear Crustal Deformation Modeling
					for Dynamic Reference Frame: A Case Study in Peninsular
					Malaysia” by Wan Anom Wan Aris and others developed
					innovative methods to model non-linear crustal movements and
					consider these models for non-static reference frames.
					Besides the paper was structured in a very good and
					scientific way, impressing results were presented too. The
					academic merit is combined with the spirit of a young
					surveyor.


				Key words: Crustal Deformation,
				Peninsular Malaysia, Non-linear,  Dynamic Reference Frame
				SUMMARY
				Series of major to great
				earthquakes struck the Sundaland platelet since December 2004
				due to convergence between Indian and Australian plates along
				its western and southern boundaries. Since then the plate has
				been undergoing significant co-seismic and post-seismic
				afterslip deformation that is continuously distorting geocentric
				reference frame within affected countries such as Malaysia. The
				deformation produced coordinate shift in geodetic network thus,
				causing errors in Global Positioning System (GPS) / Global
				Navigation Satellite System (GNSS) satellite measurements which
				limits its accuracy for high precision positioning applications.
				In addition, the afterslip deformation exhibits on-going
				non-linear motion that needs to be modelled for maintaining
				accuracy of the geocentric reference frame in Peninsular
				Malaysia. This paper reports the work of crustal deformation
				modeling  the spatio-temporal crustal deformation due to Mw >7.9
				earthquakes that is affecting geocentric reference frame and
				geospatial accuracy in Peninsular Malaysia. The fundamental
				works involved determination of co-seismic and post-seismic
				deformation to account for the non-linear effect of the crustal
				deformation. The study has found that afterslip deformation
				model enabled to minimize the effect of non-linear motion on
				geodetic network less than 2cm of accuracy. The work is crucial
				in order to improve the stability of reference frame due to
				great earthquakes especially in Peninsular Malaysia.
				1. INTRODUCTION
				Critical positioning activities
				such as national boundary determination, oil and gas field
				exploration, and high precision surveying applications need the
				utilization of geodetic reference frame. Since improvement of
				space geodesy and positioning, additional linear and non-linear
				crustal deformation signals such as plate rotation, co-seismic
				offsets and long-term post-seismic deformation have also become
				observable and must be taken into account to produce very stable
				reference frame (Bevis and Brown, 2014; Gomez et al.,
				2016). In particular, Peninsular Malaysia has experienced
				heterogeneous crustal deformations both in spatial and temporal
				due to four (4) earthquakes (>7.8Mw); 2004 Sumatra Andaman at
				9.2Mw, 2005 Nias Simeulue (8.5Mw), 2007 Bengkulu (7.9Mw) and
				2012 Indian Ocean (8.6Mw). Since then the region has experienced
				significant co-seismic displacement and yet undergoing long
				post-seismic deformation up to 39cm/year (Aris et al.,
				2016). In fact, this problem is worsening as this crustal
				deformation also exhibits non-linear motion until now due to
				significant crustal relaxation process. Currently, the
				realization of ITRF2014 has shown the inclusion of co-seismic
				and post-seismic deformation model by following logarithmic
				functional model (Altamimi et al., 2016) that will be
				used for a better stability of reference frame definition in
				Peninsular Malaysia. Even if these crustal deformation effects
				are conventionally modeled by piecewise linear fitting, one has
				to keep in mind that model uncertainties, model inconsistencies
				and possible model errors could falsify the corrections of the
				instantaneous station position (Altamimi et al., 2016).
				This paper discusses crustal deformation model in Peninsular
				Malaysia that cater for distribution of non-linear co- and
				post-seismic signals due to great earthquakes (>8Mw). The paper
				is organized into five (5) sections. Conceptual linear and
				non-linear crustal deformation in the present-day reference
				frame is provided in Section 2. Crustal Deformation  deformation
				model is discussed in Section 3. Assessment of the model is
				provided in Section 4. Finally,
				conclusion is drawn in Section 5.
				2. Linear and Non-Linear Trend
				in Spatial Crustal Deformation Model
				In order to account
				for co-seismic and post-seismic of each site which is subject to
				major earthquakes, pragmatic approach by fitting logarithmic
				and/or exponential functions to the site-specific coordinate
				time series is necessary. Figure 1 demonstrates temporal change
				of coordinate over time t due to linear and nonlinear
				trend of crustal deformation. From the figure, coordinate point
				P at time tn is the displaced position
				from initial coordinate at t0 after occurrence
				of earthquake e1. In traditional way, the
				displacement of coordinate topocentric (north or east)

				 is computed by assuming that the
				crustal deformation depicts linear trend after the occurrence of
				earthquake as in Equation 1;
 is computed by assuming that the
				crustal deformation depicts linear trend after the occurrence of
				earthquake as in Equation 1;

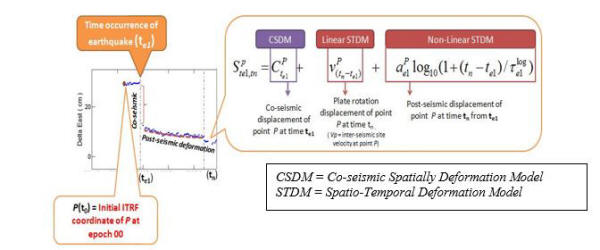

				Figure
				1: Demonstration of crustal deformation model for Peninsular
				Malaysia as applied by ITRF (Altamimi et al., 2016).

				where; t  time;

				 is co-seismic displacement at point P
				after earthquake e1,
is co-seismic displacement at point P
				after earthquake e1,

				 is total velocity displacement at point P
				from time te1 to tn, and
is total velocity displacement at point P
				from time te1 to tn, and

				 is plate rotation deformation at point P
				from time te1 to tn.
is plate rotation deformation at point P
				from time te1 to tn.
				Meanwhile, in the current practice
				of high precision ITRF, the
				 is computed by assuming that the
				crustal deformation refers to plate rotation and post-seismic
				trend after the occurrence of earthquake as in Equation 2 which
				depicts a non-linear trend.
 is computed by assuming that the
				crustal deformation refers to plate rotation and post-seismic
				trend after the occurrence of earthquake as in Equation 2 which
				depicts a non-linear trend.

				 (2)

				(2)
				where, ae1 and

				 is post-seismic amplitude and logarithmic decay
				rate, respectively for earthquake e1 at point
				P. For the case of multiple earthquake events, variable
				terms of deformation model (co-seismic, amplitude and
				logarithmic decay rates) can be imposed in Equation 1 or 2.  It
				is noted that, the application of high precision ITRF will be
				more practical when the
 is post-seismic amplitude and logarithmic decay
				rate, respectively for earthquake e1 at point
				P. For the case of multiple earthquake events, variable
				terms of deformation model (co-seismic, amplitude and
				logarithmic decay rates) can be imposed in Equation 1 or 2.  It
				is noted that, the application of high precision ITRF will be
				more practical when the
				 can be predicted at non-GPS CORS sites (i.e.,
				passive network). This is possible when the terms
 can be predicted at non-GPS CORS sites (i.e.,
				passive network). This is possible when the terms

				 , ae1,
, ae1,

				 and
and
				 are spatially modeled for north and

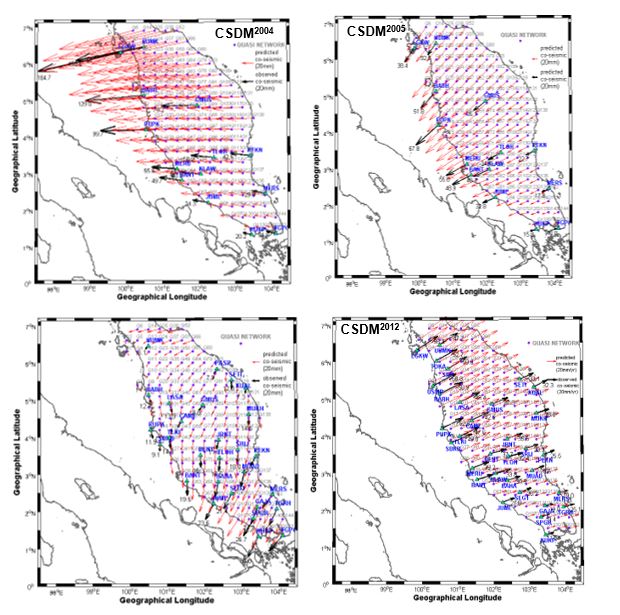

				east components separately. In this study, Co-seismic
				Spatial Deformation Model (CSDM) refers to spatial co-seismic
				displacement,
are spatially modeled for north and
				east components separately. In this study, Co-seismic
				Spatial Deformation Model (CSDM) refers to spatial co-seismic
				displacement,

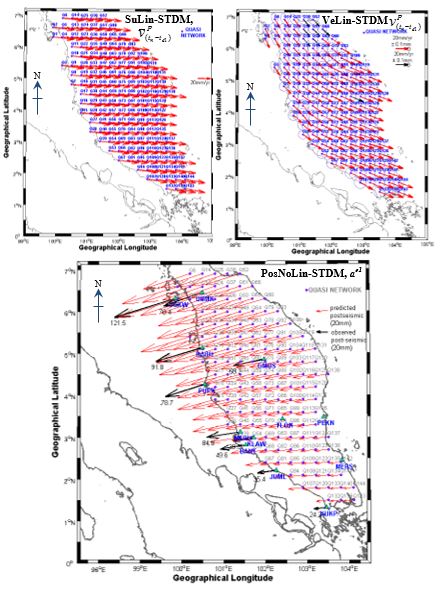

				 for each major earthquake. Meanwhile,
				Spatio-Temporal Deformation Model (STDM) can be divided into
				three (3); Sunda Linear (SuLin-STDM), Velocity Linear
				(VeLin-STDM) and Post-seismic Non-Linear (PosNoLin-STDM)
				referring to the distribution of
for each major earthquake. Meanwhile,
				Spatio-Temporal Deformation Model (STDM) can be divided into
				three (3); Sunda Linear (SuLin-STDM), Velocity Linear
				(VeLin-STDM) and Post-seismic Non-Linear (PosNoLin-STDM)
				referring to the distribution of
				 ,
,
				 and ae1 respectively. For the
				case of CSDM and STDM, this study has generated national grid
				namely Quasi Network (Q1- Q144) with spatial resolution
				0.3°×0.3° (as shown in Figure 2-(a)). The information of
and ae1 respectively. For the
				case of CSDM and STDM, this study has generated national grid
				namely Quasi Network (Q1- Q144) with spatial resolution
				0.3°×0.3° (as shown in Figure 2-(a)). The information of

				 , ae1,
, ae1,

				 and
and
				 at Quasi Network point were predicted from the
				knowledge of actual
at Quasi Network point were predicted from the
				knowledge of actual
				 , ae1,
, ae1,

				 and
and
				 signals as quantified by MyRTKnet stations that
				records the 9 years ofcrustal deformation trend since 2004
				Sumatra Andaman earthquake  (as shown in Figure 2-(b)).
signals as quantified by MyRTKnet stations that
				records the 9 years ofcrustal deformation trend since 2004
				Sumatra Andaman earthquake  (as shown in Figure 2-(b)).

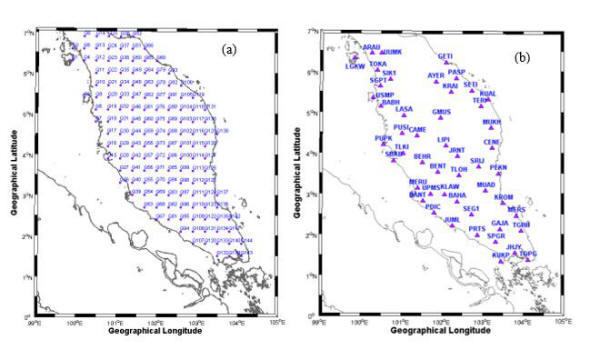

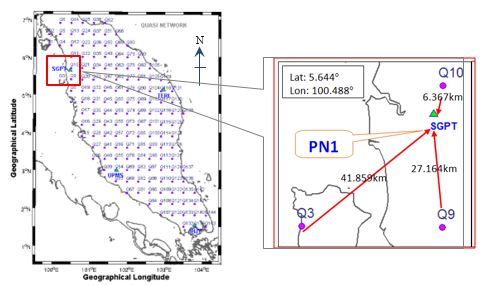

				Figure 2: (a) Quasi-Network grid
				(Q1-Q144) with spatial resolution 0.3°×0.3° ; and (b)
				distribution of MyRTKnet in Peninsular Malaysia.

				The prediction of crustal deformation
				signals can be made through least square collocation which can
				be expressed by Moritz, (1962) and Moritz, (1980). The predicted
				signal S (i.e., intra-plate grid velocity to be
				predicted) at the nearest point is given as;

				 (3)

				                (3)
				where
				 is empirical covariance functional matrix between signal L
				(i.e., co-seismic deformation, velocity fields and
				post-seismic amplitudes) at the observation points (i.e.,
				GPS sites). While,
is empirical covariance functional matrix between signal L
				(i.e., co-seismic deformation, velocity fields and
				post-seismic amplitudes) at the observation points (i.e.,
				GPS sites). While,
				 is the covariance matrix of signal L between
				observation points. The curstal deformation signals at
				Quasi-Network is assumed to be a random field which comprises
				only one random function with a number of independent variables.
				Therefore, one can define a covariance function that depends
				only on the distance between the points. The empirical value is
				used to compose the covariance function CSL in
				order to estimate the signal S. The derivation of local
				empirical covariance function is extracted from a local data
				set. The computation of the variance and covariance from the
				given local data set is demonstrated in Equation 4 and 5,
				respectively (El-Fiky et al. 1997;
				Mikhail and Ackermann, 1976);
is the covariance matrix of signal L between
				observation points. The curstal deformation signals at
				Quasi-Network is assumed to be a random field which comprises
				only one random function with a number of independent variables.
				Therefore, one can define a covariance function that depends
				only on the distance between the points. The empirical value is
				used to compose the covariance function CSL in
				order to estimate the signal S. The derivation of local
				empirical covariance function is extracted from a local data
				set. The computation of the variance and covariance from the
				given local data set is demonstrated in Equation 4 and 5,
				respectively (El-Fiky et al. 1997;
				Mikhail and Ackermann, 1976);

				 (4)

				(4)

				 (5)

				 (5)
				where distance between location of
				MyRTKnet stations (i and j) are divided into
				finite discrete intervals P.  The
				models were applied to predict both linear and non-linear motion
				for both north and east components to allow for
				determination of coordinate at specific epoch.
				3. CSDM &
				STDM
				Nine (9) years of
				high precision daily GPS-derived coordinate time series (CTS) in
				north as east components has been generated by
				using GPS  data as recoreded by MyRTKnet
				stations since December 2004. The GPS-derived CTS at these CORS
				were utilised to estimate information of
				 , ae1, and
, ae1, and
				 . Meanhwile,
. Meanhwile,
				 were extrapolated from the knowledge of Sunda plate motion
				model by Mustafar et al., 2016. These
				estimated values were then utilised to generate CSDM and STDM at
				Quasi Network points using least-square collocation as in
				Equation (3-5). Figure 3 presents CSDM vectors at Peninsular
				Malaysia during the occurance of four (4) great earthquakes. The
				vector of CSDM2004 was predicted from the knowledge
				of
were extrapolated from the knowledge of Sunda plate motion
				model by Mustafar et al., 2016. These
				estimated values were then utilised to generate CSDM and STDM at
				Quasi Network points using least-square collocation as in
				Equation (3-5). Figure 3 presents CSDM vectors at Peninsular
				Malaysia during the occurance of four (4) great earthquakes. The
				vector of CSDM2004 was predicted from the knowledge
				of
				 (north and east) during 2004
				Sumatra Andaman earthquake (9.2Mw) which was detected by
				fourteen (14) MyRTKnet stations. These vectors were headed to
				earthquake’s epicenter (northern part of Sunda trench) at
				azimuth N256o (southwestward) in northern part and
				decreased to N264o (northwestward) in southern part
				of the region. Large predicted co-seismic displacements (north
				and east) was found with the highest magnitude of 185 mm
				at point Q1 (northwestern part of the region) and decreased to
				24 mm at Q144 (southeastern part of the region). Similar to CSDM2004,
				the vector of CSDM2005 was predicted from the
				knowledge of
 (north and east) during 2004
				Sumatra Andaman earthquake (9.2Mw) which was detected by
				fourteen (14) MyRTKnet stations. These vectors were headed to
				earthquake’s epicenter (northern part of Sunda trench) at
				azimuth N256o (southwestward) in northern part and
				decreased to N264o (northwestward) in southern part
				of the region. Large predicted co-seismic displacements (north
				and east) was found with the highest magnitude of 185 mm
				at point Q1 (northwestern part of the region) and decreased to
				24 mm at Q144 (southeastern part of the region). Similar to CSDM2004,
				the vector of CSDM2005 was predicted from the
				knowledge of
				 of 2005 Nias Simeulue earthquake (8.5Mw) by using fourteen
				(14) detected MyRTKnet stations. It can be inspected that, the
				pattern of CSDM2005 vectors varies over Quasi Network
				points. The predicted vectors were found to be headed to the
				earthquake’s epicenter with azimuth varying from ~N216o
				to ~N238o. Large predicted co-seismic displacements
				were found at Quasi Network points near to site PUPK at
				predicted displacement of 67 mm. Meanhwhile, CSDM2007
				vectors was predicted from the knowledge of co-seismic
				deformation of 2007 Bengkulu earthquake (7.9Mw) as observed by
				twenty-eight (28) MyRTKnet sites. As seen from the figure, the
				magnitude and direction of CSDM2007 significantly
				vary over latitudinal direction. Heterogeneous co-seismic
				displacement can be seen from east to southeast direction and
				headed to the earthquake’s epicenter (in Mentawai trench,
				Indonesia) with azimuth that varies from ~N145o to
				~N246o. Large predicted
of 2005 Nias Simeulue earthquake (8.5Mw) by using fourteen
				(14) detected MyRTKnet stations. It can be inspected that, the
				pattern of CSDM2005 vectors varies over Quasi Network
				points. The predicted vectors were found to be headed to the
				earthquake’s epicenter with azimuth varying from ~N216o
				to ~N238o. Large predicted co-seismic displacements
				were found at Quasi Network points near to site PUPK at
				predicted displacement of 67 mm. Meanhwhile, CSDM2007
				vectors was predicted from the knowledge of co-seismic
				deformation of 2007 Bengkulu earthquake (7.9Mw) as observed by
				twenty-eight (28) MyRTKnet sites. As seen from the figure, the
				magnitude and direction of CSDM2007 significantly
				vary over latitudinal direction. Heterogeneous co-seismic
				displacement can be seen from east to southeast direction and
				headed to the earthquake’s epicenter (in Mentawai trench,
				Indonesia) with azimuth that varies from ~N145o to
				~N246o. Large predicted
				 were found with highest magnitude of 31 mm at Quasi Network
				points near to site KUKP (southern part).
were found with highest magnitude of 31 mm at Quasi Network
				points near to site KUKP (southern part).




				Figure 3: CSDM vectors,

				 in Peninsular Malaysia during great earthquakes
				occurances.
in Peninsular Malaysia during great earthquakes
				occurances.


				Figure 4: SuLin-STDM, VeLin-STDM and
				PosNoLin-STDM at Quasi Network points.


			Finally, vectors of CSDM2012
			represents spatial distribution of
			 during the 2012 Indian Ocean earthquake (8.6Mw). The model was
			determined from the knowledge of estimated
during the 2012 Indian Ocean earthquake (8.6Mw). The model was
			determined from the knowledge of estimated
			 from thirty-four (34) MyRTKnet sites. One can inspect that the
			vector of CSDM2012 headed to northeastward (azimuth from
			~N145o to ~N246o) and depicted different
			co-seismic pattern as compare to the other CSDMs. This can be
			explained due to the internal deformation of the diffused plate
			boundary between India and Australia plates that caused the
			Peninsular Malaysia to be co-seismically displaced away from the
			earthquake’s epicenter.
from thirty-four (34) MyRTKnet sites. One can inspect that the
			vector of CSDM2012 headed to northeastward (azimuth from
			~N145o to ~N246o) and depicted different
			co-seismic pattern as compare to the other CSDMs. This can be
			explained due to the internal deformation of the diffused plate
			boundary between India and Australia plates that caused the
			Peninsular Malaysia to be co-seismically displaced away from the
			earthquake’s epicenter.

			The velocity vector of SuLin-STDM, VeLin-STDM and
			PosNoLin-STDM are presented in Figure 4. The SuLin-STDM vectors
			appeared to be consistent at all Quasi Network points. This indicate
			the tectonic motion depicted as rigid but follow rotation of Sunda
			plates. The region moves southeastward (in range of azimuth N95o
			– N101o) with slow variation of magnitude at 31.713 mm/yr
			in the southern part and 33.212 mm/yr in the northern part of the
			region. From the figure, one can inspect inhomogeneous direction of
			intra-plate velocities from sites in northern to southern part that
			moved horizontally southeastward (in range of azimuth N130o
			– N150o) with average magnitude of 15.389 mm/yr. The
			magnitude increased gradually over longitudinal and latitudinal with
			average magnitude of 22.989 mm/yr and moved southeastwardly (in
			range of azimuth N110o – N122o). Finally, the
			pattern of PosNoLin-STDM indicates that the region is being driven
			by a single afterslip mechanism since the day of the great 2004
			Sumatra Andaman and subsequent earthquakes. The decay rate of
			post-seismic,
			 was found at 148.5 and 204.1 days for north
			and east components. From the analysis, these decay rates
			were also found to be consistent for all sites, however, the
			post-seismic amplitudes of the afterslip tends to varies over the
			region in spatial sense. Large post-seismic amplitudes can be
			noticed at Quasi Network points situated in the northwestern part of
			Peninsular Malaysia with magnitude ~121.5 mm. The post-seismic
			amplitudes, ae1
			 decreased over latitudinal of the region with minimum
			magnitude of 24.2 mm within southern part of the region.
 was found at 148.5 and 204.1 days for north
			and east components. From the analysis, these decay rates
			were also found to be consistent for all sites, however, the
			post-seismic amplitudes of the afterslip tends to varies over the
			region in spatial sense. Large post-seismic amplitudes can be
			noticed at Quasi Network points situated in the northwestern part of
			Peninsular Malaysia with magnitude ~121.5 mm. The post-seismic
			amplitudes, ae1
			 decreased over latitudinal of the region with minimum
			magnitude of 24.2 mm within southern part of the region.
			4. ASSESSMENT OF CSDM AND STDM IN RESOLVING REFERENCE FRAME
			DISTORTION
			For assessment of STDM and CSDM,
			experimental works has been conducted to test the efficiency of the
			model to predict crustal deformation trend by following three (3)
			assumptions; Assumption 1, Assumption 2 and Assumption 3 and its
			explanation as tabulated in Table 1. Crustal deformation trend
			prediction for each three assumptions was performed at four (4)
			different locations of testing point. These points were closed to
			MyRTKnet stations (i.e., SGPT, UPMS, TERI, and JHJY) whereby the 9
			years of daily GPS-derived CTS in north as east components from
			these four MyRTKnet sites were independent from STDM and CSDM
			generations. Figure 5 shows locations of PN1 situated in the
			northern part of Peninsular Malaysia (assessed with MyRTKnet station
			SGPT).  The assessment result is potrayed in Figure 6.

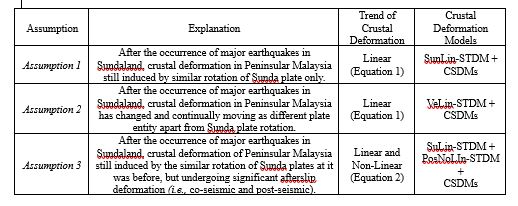

			Table 1: Three (3) assumptions of crustal
			deformation trends in Peninsular Malaysia to simulate the test based
			on the assumptions


			Figure 5: Locations of PN1 situated in northern
			part of Peninsular Malaysia.
			As seen in Figure 6, the simulated CTS at
			PN1 based on Assumption 1 led to large difference of RMSe about
			59.238 mm and 181.425 mm in north and east components respectively.
			The simulated CTS from Assumption 2 were different from actual
			GPS-derived CTS in north component with RMSe at 22.889 mm. However
			large RMSe was depicted in easting components up to 77.227 mm.
			Simulated CTS from Assumption 3 shows good fit with the GPS-derived
			CTS in north and east components with averaged RMSe and averaged R2
			at 9.984 mm and 0.918 mm respectively.

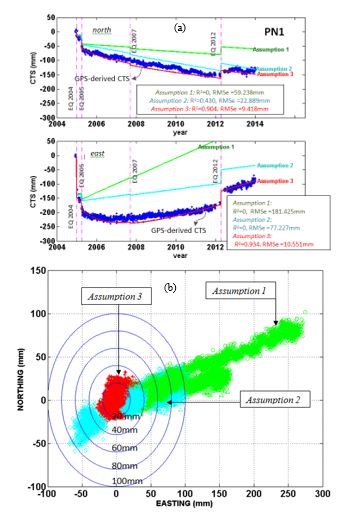

			Figure 6: Misfit between the simulated CTS and
			observed GPS-derived CTS at four locations. Green, cyan and red
			represents residual simulated CTS based on Assumption 1, Assumption
			2 and Assumption 3, respectively.
			From Figure 6 (a), the simulated CTS from
			Assumption 1 and 2 were unable to predict the non-linear trend of
			post-seismic effect after the 2005 Nias Simeulue earthquake and thus
			resulting large coordinate dispute over the time with RMSe up to 114
			mm. Nevertheless, simulated CTS from Assumption 3 provide good fit
			of coordinate change prediction in both north and east components
			with averaged RMSe of 11.538 mm. Nevertheless, simulated CTS from
			Assumption 3 provide good fit of coordinate change prediction in
			both northing and easting components with averaged RMSe 12.557mm and
			averaged R2 at 0.892. In overall, the use of CSDMs works-well to
			‘mimic’ the co-seismic displacement during the day of major
			earthquake’s occurrences. However, large post-seismic amplitudes can
			be found in the northern and west-coast of Peninsular Malaysia which
			is responsible for the inability of VeLin-STDM to determine the
			actual trend of crustal deformation within the region. It is
			expected that the used of SunLin-STDM and PosNoLin-STDM are
			efficient to resolve such distorted geodetic network and adequately
			describe the non-linear trend of post-seismic deformation.Further
			analysis on residual coordinate was made between predicted CTS and
			GPS-derived CTS. The green, cyan and red nodes in scatter plot of
			Figure 6 (b) represent residual from simulated CTS based on
			Assumption 1, Assumption 2, and Assumption 3 respectively. It can be
			inspected that ~83% of simulated CTS from Assumption 1 fall inside
			the 2cm limit, and ~17% fall between 2 and 4 cm. Meanwhile, 22% of
			simulated CTS from Assumption 2 fall within 2 cm limit, and the
			other 78% were distributed from 2 to 10 cm. Nevertheless, simulated
			CTS from Assumption 1 signify the presence of systematic bias. The
			results from this assessment indicates that after the occurrence of
			major earthquakes in Sundaland, crustal deformation of Peninsular
			Malaysia is still induced by the similar rotation of Sunda plates as
			it was before, but undergoing significant afterslip deformation
			(i.e., co-seismic and post-seismic), that agree with Assumption 3 of
			the study.
			5. CONCLUSION
			This paper demonstrated on how to
			resolve reference frame distortion effects of Sundaland plate motion
			and recent major earthquake by utilization of linear and non-linear
			reference frame using CSDM and STDM concepts. As the focus of the
			study, Peninsular Malaysia is affected by four earthquakes (>7.8Mw)
			situated in Sumatra plate boundaries since December 2004. Therefore,
			site velocity, co-seismic and post-seismic logarithmic-based
			parameters from these four earthquakes has been estimated and the
			parameter of estimation was utilized to model the SuLin-STDM,
			VeLin-STDM, PosNoLin-STDM, and CSDMs at Quasi Network points using
			least-squares collocation approach. As a result, 144 Quasi Network
			points has been generated and each Quasi Network points comprised
			known STDMs and CSDMs magnitudes. This has enabled the determination
			of STDMs and CSDMs magnitudes at each any point in Peninsular
			Malaysia. Three (3) assumptions were made to check the ability of
			linear and non-linear STDMs in simulating crustal deformation trend
			at the selected point.  From the analysis, the CSDM is able to
			predict co-seismic displacement during the day of great earthquake’s
			occurrences. In addition, the utilization of SuLin-STDM and
			VeLin-STDMs were found imprecise for estimating the non-linearity of
			crustal deformation trend within the region. The assessment shows
			that ~83% of simulated CTS can achieve up to 20 mm of accuracy by
			inclusion of linear and non-linear STDMS. The results indicate after
			the occurrence of major earthquakes in Sundaland, crustal
			deformation of Peninsular Malaysia is still induced by the similar
			rotation of Sunda plates as it was before, but undergoing
			significant afterslip deformation that depicts non-linear crustal
			deformation over the region. Therefore, the utilization of
			SuLin-STDM, PosNoLin-STDM and CSDM is appropriate to cope with
			non-linear crustal deformation due to significant co- and
			post-seismic deformation thus support stability of reference frame
			realization in this region.
			ACKNOWLEDGEMENT
			The authors would like to thank to Department Surveying and
			Mapping Malaysia for providing the GPS/GNSS data of this study. The
			authors would also like to thanks to Ministry of Education, Malaysia
			and Universiti Teknology Malaysia, for their financial support in
			this study. This research was also partly funded by a grant
			Fundamental Research Grant Scheme (FRGS: 4F962)  (2017 – 2020):
			Modeling Afterslip Crustal Deformation Of Sundaland’s Earthquake for
			Malaysia.
			REFERENCES
			Altamimi, Z., P. Rebischung, L. Métivier, and Xavier, C. (2016).
			ITRF2014: A new release of the International Terrestrial Reference
			Frame modeling nonlinear station motions. J. Geophys. Res. Solid
			Earth, 121, 6109–6131, doi:10.1002/2016JB013098.
			Aris, W. W.A., Musa, T.A.,and Omar, K., Estimation of Co- And
			Postseismic Deformation after the Mw 8.6 Nias-Semeulue and Mw 8.5
			Bengkulu Earthquakes from Continuous GPS Data, The International
			Archives of the Photogrammetry, Remote Sensing and Spatial
			Information Sciences, Volume XLII-4/W1, 2016, International
			Conference on Geomatic and Geospatial Technology (GGT) 2016, 3–5
			October 2016, Kuala Lumpur, Malaysia(SCOPUS).
			Bevis, M., and Brown, A. (2014). Trajectory models and reference
			frames for crustal motion geodesy. J. Geod 88:283-311.
			doi:10.1007/s00190-013-0685-5.
			El-Fiky G.S., Kato, T., Fujii, Y. (1997). Distribution of
			vertical crustal movement rates in the Tohoku district, Japan,
			predicted by least-squares collocation. Journal of Geodesy, 71:
			432-442. doi: 10.1007/s001900050111; Print ISSN: 0949-771.
			Gomez, D. D., Pinon, D.A., Smalley Jr, R., Bevis, M., Cimbaro, S.
			R., Lenzano, L. E., Baron, J. (2016). Reference frame access under
			the effects of great earthquakes: a least square collocation
			approach for non-secular post-seismic evolution. J. Geod. (2016).
			90:263-273. Doi:10.1007/s00190-015-00871-8.
			Mikhail E.M., Ackermann, F. (1976). Observation and least
			squares. Harper and Row, New York.
			Mustafar A.M., Simons, W.J.F., Tongkul, F., Satirapod, C., Omar,
			K.M., Visser, P. (2016). Quantifying Deformations in North Borneo
			with GPS. Journal of Geodesy.
			BIOGRAPHICAL NOTES
			Wan Anom Wan ARIS holds a M.Sc. in Geomatics Engineering from
			Universiti Teknologi Malaysia. She is currently undertaking PhD
			studies at Faculty of Geoinformation & Real Estate, Universiti
			Teknologi Malaysia. Her research area is GNSS data processing
			techniques for crustal deformation studies in Southeast Asia.
			Tajul Ariffin MUSA is a senior lecturer in the Faculty of
			Geoinformation & Real Estate, Universiti Teknologi Malaysia. He
			obtained his PhD (Satellite Navigation & Positioning) from
			University of New South Wales, Australia.  He specialises in
			surveying and mapping, satellite geodesy, atmospheric and space
			weather study. His research activities are focused on developing
			Global Positioning System (GPS) real-time surveying system and
			applications, GPS for meteorology, ionospheric measurements and its
			modelling for space weather monitoring.
			Kamaludin MOHD OMAR holds a M.Sc. in Geodetic Science from Ohio
			State University. He is currently an associate professor and head of
			Geoinformation Department, Faculty of Geoinformation and Real
			Estate, Universiti Teknologi Malaysia. He specializes on geoid
			determination, high precision positioning and satellite altimetry.
			Abdullah Hisam OMAR is a senior lecturer in the Faculty of
			Geoinformation & Real Estate, Universiti Teknologi Malaysia. He
			obtained his PhD from Universiti Teknolohi Malaysia. He specialises
			in surveying and mapping, satellite geodesy, atmospheric and space
			weather study. His research activities are focused on positioning,
			mapping and Marine Cadastre in Malaysia.
			CONTACTS
			Ms. Wan Anom Wan Aris
			Geomatics and Innovation Research Group, Faculty of
			Geoinformation & Real Estate 81310 Universiti Teknologi Malaysia
			Johor Bahru, MALAYSIA.
			Email: anomaris@gmail.com
			kamaludinomar@utm.my
			Web site:

			http://www.geoinfo.utm.my/Research_Group/gng/aboutus.html
			Dr. Tajul Ariffin Musa
			Geomatics and Innovation Research Group, Faculty of
			Geoinformation & Real Estate 81310 Universiti Teknologi Malaysia
			Johor Bahru, MALAYSIA.
			Email: tajulariffin@utm.my
			Web site:

			http://www.geoinfo.utm.my/Research_Group/gng/aboutus.html
			Assoc. Prof. Kamaludin Mohd Omar
			Geomatics and Innovation Research Group, Faculty of
			Geoinformation & Real Estate 81310 Universiti Teknologi Malaysia
			Johor Bahru, MALAYSIA.
			Email: kamaludinomar@utm.my
			Web site:

			http://www.geoinfo.utm.my/Research_Group/gng/aboutus.html
			Dr. Abdullah Hisam Omar
			Geomatics and Innovation Research Group, Faculty of
			Geoinformation & Real Estate 81310 Universiti Teknologi Malaysia
			Johor Bahru, MALAYSIA.
			Email:
			abdullahhisham@utm.my
			Web site:

			http://www.geoinfo.utm.my/Research_Group/gng/aboutus.html
